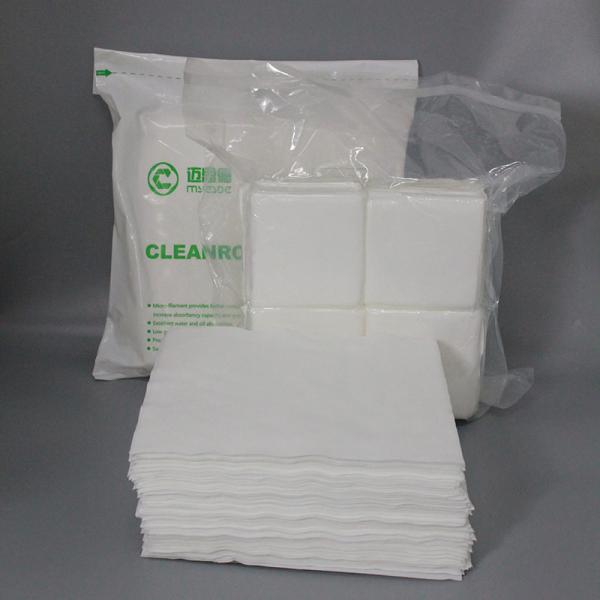

Class 1000 Thermal Sealed Cleaning Microfiber Industrial Lint Free
Cleanroom Wiper
Class 1000 Thermal Cutting Cleaning Microfiber Industrial Lint Free
Cleanroom Wiper
Other Products we Supply:
Cleanroom Apparels(Disposable, Launderable);
Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes,
Swabs);
Cleanroom Documentation(Paper, Notebook);
Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove);
Cleanroom Mats(Sticky Mat, Table/Floor Mat);
Product Description:
They are comprised of 75% Polyester and 25% Nylon.Laser cut/Heat
cut/Ultrasonic sealed edge maximize reduces fiber
contamination.Extremely low levels of particulate and extractable
counts.Excellent absorbency and wiping efficiency.
Applications:
Ideal products for the microelectronics industry, ISO5-6 clean room
cleaning products: such as hard disk / memory / LCD panel / tablet
/ smart phone / lens production process
Feature:
• Ultra-low particle and fiber release
• Free of Silicon, Amides, and DOP contamination
• Leave no scratch on body's sensitive surface
• Chemically compatible with IPA, Acetone and other solvents
• Complies with RoHS requirements
Benefits:
• Silk-smooth surface finish for use on even the most delicate
surfaces
• Durable abrasion resistance for use when removing
microcontamination from large areas and irregular surfaces
• Best-in-class fluid absorption
• Leaves a polished finish on surfaces such as stainless steel
• Available in a range of edge finishes to meet your application
requirements
Technical Data:
| Attribute; (units) | Value ** | Test Method |
| | |
| Basis weight; nominal (g/m2) | 173 | MSD-QI-QS-007 A0 |
| Absorbency in water | | IEST-RP-CC004.3 |
| Intrinsic; (mL/g) | 2.41 | |
| Extrinsic; (mL/m2) | 416.93 | |
| Sorptive rate; (seconds) | 1 | IEST-RP-CC004.3 |
| Non-volatile residue, NVR | | IEST-RP-CC004.3 |
| In deionized water; (g/m2) | 0.014 | |
| In isopropanol; (g/m2) | 0.012 | |
| Specific ions | | IEST-RP-CC004.3 |
| Sodium; (ppm) | 0.012 | |
| Chloride; (ppm) | 0.062 | |
| Potassium; (ppm) | 0.094 | |
| Particles, readily releasable | | |
| APC: ≥0.3μm(Ea/ft3) | 135 | IEST-RP-CC003.3 |
| LPC:≥0.5μm(106/m2 ) | 16 | IEST-RP-CC004.3 |
Cleanroom Environment:
• ISO Class 3 – 8
• Class 1 – 100,000
Shelf Life
• Non-Sterile (Dry) – 3 years from date of manufacture
| Products: |
| Number | Description | Sterile | Packaging | Case | |
| Dry wipes | |
| 101040086-01 | 4" x 4"dry | | 400 wipes/bag | 20 bags | |
| 101040044-01 | 9" x9" dry | | 150 wipes/bag | 10 bags | |
| 101040044-10 | 9" x 9"dry, SterileWipe | ★ | 150 wipes/bag | 10 bags | |
Notes:
1) Valid product comparisons may only be obtained through
side-by-side testing in the same test facility, under similar
conditions.
2) The information presented here is applicable to the part numbers
shown above, as well as to any product containing the same
materials and produced under the same conditions.
3) Size can be customized according to customer requirements.
4) Stacked, Bulk and Folded method can be customized according to
customer requirements.
